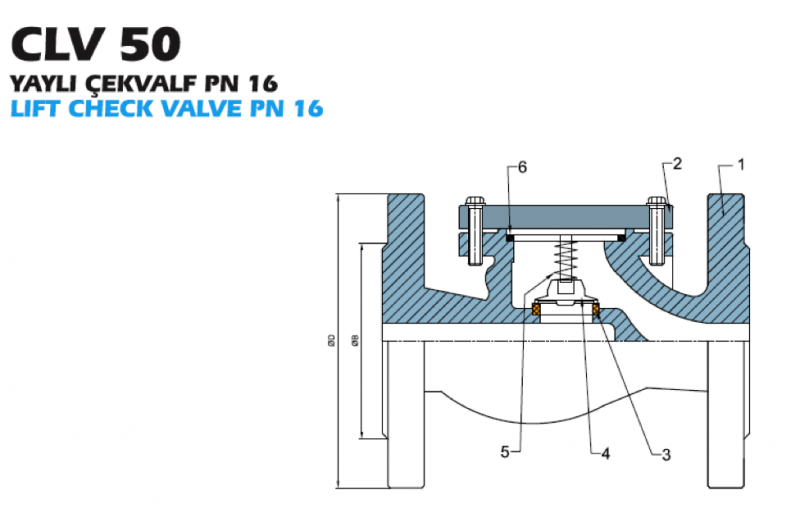

CLV 50
|

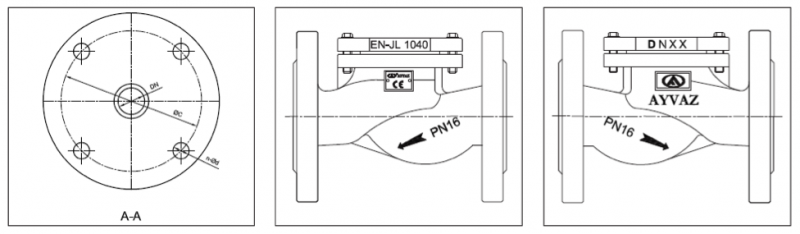

РАЗМЕРЫ/DIMENSIONS |
|
|||||||
|
DN |
L± 1.0 |
B±2.0 |
T |
ǾD±1.O |
ǾB±1.O |
ǾC±1.O |
n-Ǿ d |
|
|
15 |
130 |
14 |
2 |
95 |
45 |
65 |
4-14 |
|
|
20 |
150 |
16 |
2 |
105 |
58 |
75 |
4-14 |
|
|
25 |
160 |
16 |
2 |
1 15 |
68 |
85 |
4-14 |
|
|
32 |
180 |
18 |
2 |
140 |
78 |
100 |
4-18 |
|
|
40 |
200 |
18 |
2 |
150 |
88 |
110 |
4-18 |
|
|
50 |
230 |
20 |
3 |
165 |
102 |
125 |
4-18 |
|
|
65 |
290 |
20 |
3 |
185 |
122 |
145 |
4-18 |
|
|
80 |
310 |
22 |
3 |
200 |
138 |
160 |
8-18 |
|
|
100 |
350 |
24 |
3 |
220 |
158 |
180 |
8-18 |
|
|
125 |
400 |
26 |
3 |
250 |
188 |
210 |
8-18 |
|
|
150 |
480 |
26 |
3 |
285 |
212 |
240 |
8-22 |
|
|
200 |
600 |
30 |
3 |
340 |
268 |
295 |
12-22 |
|
|
250 |
730 |
32 |
4 |
405 |
320 |
355 |
12-26 |
|
|
300 |
850 |
32 |
4 |
460 |
378 |
410 |
12-26 |
|
